- Size: 5CBM
- Place of Origin: Shandong
- Brand Name: Rotech
- Model Number: 6-48
- Weight: 1300.000 kg

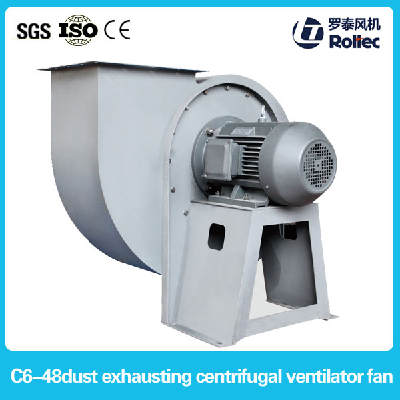

C6-48 dust exhausting centrifugal ventilator fan C6-48 dust exhausting centrifugal ventilator fan is used for discharging air mixture ,which include wood debris, fiber and dust.This fan adopt the working principle of centrifugal fan,it has many features such as large volume ,high pressure ,wear resistance ,long serve life,etc.it is very popular for dirt customers.If discharge hard particles ,it must add dust-cleaning device in the front of inlet.
Shandong Rotech Blower Co.,Ltd, a professional manufacturer of fan, is the wholly-owned subsidiary of Shandong Kaitai Group Co.,Ltd, which integrates technical research, development and production.
Shandong Kaitai Group Co.,Ltd,which occupies 60,000 square meters. With 17 sales branches across the country and 10 overseas branches, the company has established a multinational sales and service network.
- Size: 5CBM
- Place of Origin: Shandong
- Brand Name: Rotech
- Model Number: 6-48
- Weight: 1300.000 kg
Parameters
Product No | Rotate speed r/min | Capacity m3/h | Total pressure Pa | Motor power kW |
3.15c | 3150 | 1487-3323 | 1376-1880 | 2.2-3 |
2800 | 1322-2954 | 1086-1483 | 1.5-2.2 | |
2500 | 1180-2637 | 865-1181 | 1.1-1.5 | |
2240 | 1057-2363 | 694-948 | 1.1 | |
2000 | 944-2110 | 553-755 | 0.75 | |
1800 | 850-1899 | 448-611 | 0.75 | |
1600 | 755-1688 | 354-483 | 0.75 | |
4C | 2500 | 2369-5495 | 1384-1933 | 3-4 |
2240 | 2122-4942 | 1110-1550 | 2.2-3 | |
2000 | 1895-4396 | 884-1234 | 2.2 | |
1800 | 1705-3957 | 716-999 | 1.5 | |
1600 | 1516-3517 | 565-789 | 1.1-1.5 | |
1400 | 1326-3077 | 433-603 | 0.75 | |
1250 | 1184-2748 | 345-481 | 0.75 | |
5c | 2000 | 3553-8623 | 1381-1953 | 5.5-7.5 |
1800 | 3198-7761 | 1118-1580 | 4-5.5 | |
1600 | 2842-6899 | 882-1247 | 3 | |
1400 | 2487-6036 | 675-954 | 2.2 | |
1250 | 2221-5390 | 538-760 | 1.5-2.2 | |
1120 | 1990-4829 | 432-610 | 1.1-1.5 | |
1000 | 1776-4312 | 344-486 | 0.75-1.1 | |
6.3C | 1600 | 5686-13799 | 1403-1985 | 7.5-11 |
1400 | 4975-12074 | 1073-1517 | 5.5-7.5 | |
1250 | 4442-10781 | 855-1208 | 4-5.5 | |
1120 | 3980-9660 | 686-969 | 3-4 | |
1000 | 3554-8625 | 547-772 | 2.2-3 | |
900 | 3198-7762 | 443-625 | 1.5-2.2 | |
800 | 2843-6900 | 350-494 | 1.1-1.5 | |
8C | 1250 | 9096-22075 | 1381-1953 | 1.5 |
1120 | 8150-19779 | 1108-1566 | 7.5-1.1 | |
1000 | 7276-17660 | 882-1247 | 7.5 | |
900 | 6549-15894 | 714-1009 | 5.5-7.5 | |
800 | 5821-14128 | 564-797 | 3-4 | |
710 | 5166-12539 | 444-627 | 3 | |
630 | 4584-11126 | 350-494 | 2.2 | |
10c | 1000 | 14804-36417 | 1381-2043 | 18.5-22 |
900 | 13323-32776 | 1118-1653 | 15-18.5 | |
800 | 11843-29134 | 882-1034 | 11-15 | |
710 | 10510-25856 | 695-1026 | 7.5-11 | |
630 | 9327-22943 | 547-807 | 5.5-7.5 | |
560 | 8290-20393 | 432-638 | 4-5.5 | |
500 | 7402-18208 | 344-508 | 4 | |
12.5C | 800 | 23131-56902 | 1381-2043 | 30-37 |
710 | 20528-50501 | 1087-1607 | 22-30 | |
630 | 18215-44811 | 855-1264 | 15-18.5 | |
560 | 16191-39832 | 675-997 | 11-15 | |
500 | 14457-35564 | 538-795 | 7.5-11 | |
450 | 13011-32007 | 436-643 | 5.5-7.5 | |
400 | 11565-28451 | 344-508 | 4-5.5 |
